Insulated Automatic Roller Garage Door (77mm Lath) (24 Standard Colours)
Insulated Automatic Roller Garage Door (77mm Lath) (24 Standard Colours) - Image 2
Insulated Automatic Roller Garage Door (77mm Lath) (24 Standard Colours) - Image 3

Insulated Automatic Roller Garage Door (77mm Lath) (24 Standard Colours)

Price range: £872.40 through £1,973.20

Made to Measure Sizes up to 5200mm Wide

  • Please enter your opening sizes - See measuring guide tab below for help.

    Depending on whether you decide to have your roller door fitted behind or inbetween the brickwork, we will either add or deduct the guides and box for you on order.

    Width (mm)

    Width: Opening Width

    Please enter measurement 1 from the guide image.

    Height (mm)

    Height: Opening Height

    Please enter measurement 2 from the guide image.

    Fit Type:

    If you are unsure what fit type you require, please scroll down to the measuring guide below for more information.

    Door Colour:
    Choose Box Cover:
    Guides & Box Colour:
    Control System:
    Motor Position:

    When viewed from inside looking out.

  • *Width:

    *Height:

    Reset options
SKU: N/A Categories: , ,

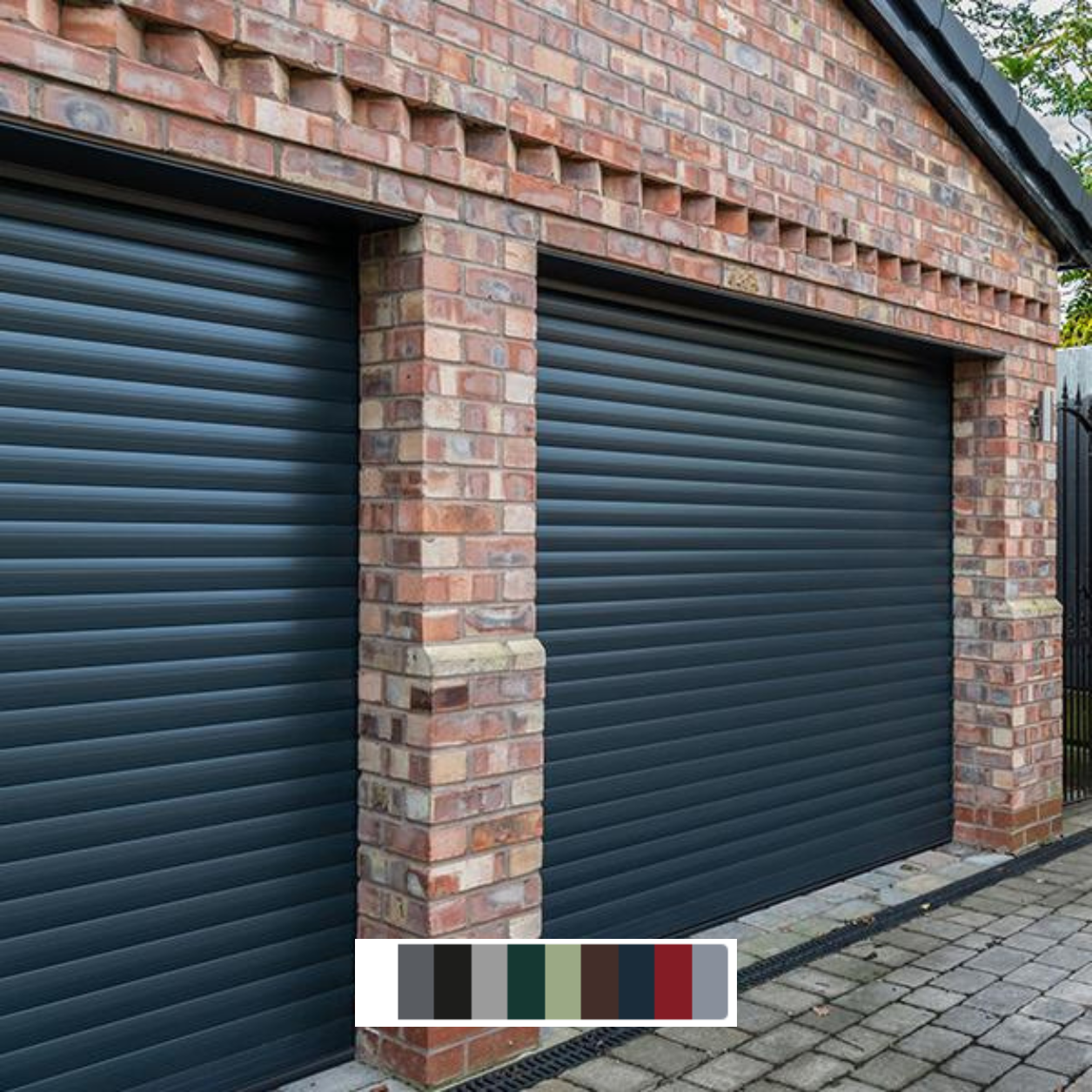

The Insulated 77 Roller Garage Door is the perfect blend of sleek design, exceptional insulation, and enhanced security. Built with durable, 77mm double-skinned aluminium slats filled with insulating foam, it offers superior thermal efficiency while maintaining a compact, space-saving design. Ideal for homeowners seeking a modern, low-maintenance solution, this roller garage door provides both functionality and aesthetic appeal.

Key Features:

  • Premium Insulation: 77mm insulated aluminium slats effectively reduce heat loss, keeping your garage warm in winter and cool in summer.
  • Space-Saving Design: The vertical rolling mechanism maximizes garage space by eliminating the need for tracks along the ceiling.
  • Customizable Appearance: Choose from a wide range of colours and finishes to suit your home’s style.
  • Durable Construction: Crafted from corrosion-resistant aluminium with a tough, weatherproof finish for lasting performance.

Advanced Safety and Security Options:

  • Somfy Wired Safety Edge System: Enhances safety by detecting obstructions during door operation, ensuring reliable and secure closure.
  • Built-In Alarm: Integrated with the Somfy system, the alarm activates if forced entry is attempted, providing an additional layer of security and peace of mind.
  • Manual Override: Allows for manual operation during power outages, ensuring accessibility at all times.

Automation and Convenience:

Effortlessly control your garage door with a remote-operated system, compatible with smart home technology for seamless integration. The optional Somfy safety edge system ensures smooth, secure operation with minimal effort.

Delivery Information

Garage Door Delivery Times

Up & Over Garage Doors

Steel: Colour: Time: Price:
Standard Size White 2-4 weeks (UK) Delivery: £65.00
Standard Size Coloured 2-6 weeks (UK) Delivery: £65.00
Made to Measure White or Coloured 4-7 weeks (UK) Delivery: £65.00

Roller Garage Doors

Compact 55: Colour: Time: Price:
Made to Measure Paint Finish 3-5 weeks (UK) Delivery: £65.00
Made to Measure Laminate 3-5 weeks (UK) Delivery: £65.00
Made to Measure Custom RAL 5-8 weeks (UK) Delivery: £65.00
Standard 77: Colour: Time:
Made to Measure Paint Finish 3-5 weeks (UK) Delivery: £65.00
Made to Measure Laminate 3-5 weeks (UK) Delivery: £65.00
Made to Measure Custom RAL 5-8 weeks (UK) Delivery: £65.00

Sectional Garage Doors

45mm Range Sectional Doors: Colour: Time: Price:
Made to Measure White 5-8 weeks (UK) Delivery: £65.00
Made to Measure Paint Finish 5-8 weeks (UK) Delivery: £65.00
Made to Measure Custom RAL 6-12 weeks (UK) Delivery: £65.00

Side-hinged garage doors

Steel: Colour: Time: Price:
Made to Measure Paint Finish 4-7 weeks (UK) Delivery: £65.00
Made to Measure Custom RAL 6-12 weeks (UK) Delivery: £65.00
Insulated: Colour: Time:
Made to Measure White 4-6 weeks (UK) Delivery: £65.00
Made to Measure Paint Finish 4-9 weeks (UK) Delivery: £65.00
Made to Measure Custom RAL 6-12 weeks (UK) Delivery: £65.00
Timber: Colour: Time:
Made to Measure Paint Finish 8-12 weeks (UK) Delivery: £65.00

Parts Delivery Times

UK Mainland – England, Scotland & Wales (excluding Scottish Highlands, Northern Ireland and Islands)
  Royal Mail Delivery Time Max Weight Max Length Price
  RM48 – Signed For 2 Working Days 1kg 45cm £5.50
  DPD Delivery Time Max Weight Max Length Price
  Next Day Next Day 30kg 1M £8
  DX Delivery Time Max Weight Max Length Price
  Next Day Next Day 20kg 6M £12.00

If you have any questions or concerns, please do not hesitate to reach out to our customer service team.

Standard Garage Door Sizes

Measuring Guide

When entering your ordering sizes please enter your opening width (measurement 1 on the measuring guide below) and opening height (measurement 2 on the measuring guide below).

Width - To measure the opening width, take the width measurement (1) in 3 places, across the top, middle and bottom.

If A Behind Fit: Enter the widest measurement. This should be your ordering width. The guides will fit behind the garage reveals.
If A Inbetween Fit: Enter the the shortest measurement. This should be your ordering width. The frame will fit between the opening brickwork.

Height - To measure the opening height, measure the height from the floor to the underside of the lintel in 3 places, on the left side, centre and right side.

If A Behind Fit: Enter the highest measurement. This should be your ordering height. The top box will fit behind the lintel.
If A Inbetween Fit: Enter the the shortest measurement. This should be your ordering height. The box will fit under the lintel and between the opening brickwork.



Choosing your fit type?
Fitting BEHIND the brickwork:

If you wish to have your door fitted behind the brickwork, then please check to make sure you have a minimum of 90mm behind each reveal (measurements 3 and 4 on the guide above). Along with a minimum of 300mm available behind the lintel (measurement 5 on the guide below).

The minimum side room required for a behind-fit is 90mm behind each reveal. (this allows for the guides)

The minimum headroom required for a behind-fit is 300mm behind the lintel. (this allows for the top box that the door rolls up into.)

Fitting INBETWEEN the brickwork:
If you wish to have your door fitted between the brickwork, we will deduct the guide and box for you, so please enter the opening sizes. (Measurements 1 and 2 on the guide above)

We always suggest allowing a 10mm tolerance on both the height and width for inbetween fits. For example, if your opening width is 2400 mm, then you should place the order as 2390 mm.

Fit Types

When fitting a garage door, you have 2 main fitting positions to choose from.

Behind fit is where you fit the garage door and frame work/guides behind your piers, like in the example image below.

This is ideal for sectional and roller garage doors and also garages with lots of room.

Inbetween fit is where you fit the garage door and frame work between your piers, like in the example image below.

This is ideal for up-and-over garage doors and side-hinged garage doors.

You will also see a roller door and sectional garage door fitted in between the opening and under the lintel if there is limited space inside the garage.

Width:

Up to 2000mm, Up to 2250mm, Up to 2500mm, Up to 3000mm, Up to 3500mm, Up to 3750mm, Up to 4000mm, Up to 4250mm, Up to 4500mm, Up to 4750mm, Up to 5200mm
Height:

Up to 2300mm, Up to 2600mm, Up to 2900mm, Up to 3050mm
